SKT-SGS-001 Round Bellows Cover

Our main products include various types of roll forming machine, pipe processing machine, wire drawing machine, lathe and other related machines, etc.

Commodity name： SKT-SGS-001 Round Bellows Cover

Category:

Protective Cover Series

Email:

Shengkun.liuxu@gmail.com

WhatsApp:

+8618858689791

Get Quote

Technical documentation

The centralised chip conveyor device is a combination of large-scale chip conveyor, which generally adopts chain plate chip conveyor and chain dragging to scrape out the chips along the bottom of the chip conveyor, so as to collect and convey granular metal iron chips, fine iron chips, casting iron chips and non-metallic chips, with a large conveying flow. The machine has streamline modelling, beautiful appearance, smooth chip removal, small volume, high efficiency, stable transport, safe and reliable, low noise, and overload protection function. The pitch is 31.75mm and 50.8mm for choice.

The process of machining and manufacturing will produce a large number of chips. These chips often contain a large amount of oil and cutting emulsion. Due to the fluffy chips, easy to scatter around the machine tool and the workshop channel, so it is not only difficult to clean up, but also seriously pollute the workshop environment. The traditional solution is to clean up the chips manually and finally converge the chips into a large chip box, which is regularly lifted to the car by an overhead crane and transported out. This method is a large workload, waste of manpower, and occupy the production overhead crane, easy to conflict with the production, and the workshop chip storage area will take up the effective use of the workshop area, affecting the logistics of the workshop, but also cause difficulties in the management. With the development of the production of CNC machine tools are widely used, the workpiece processing efficiency has been greatly improved, but the corresponding research for the machine tool chip removal is relatively lagging behind, and now most of the research on chip removal is only for a single machine tool, rarely involved in the design of the entire workshop chip removal system. For this reason, our company designs a set of solutions for the whole workshop chip removal system.

产品描述

Parameters

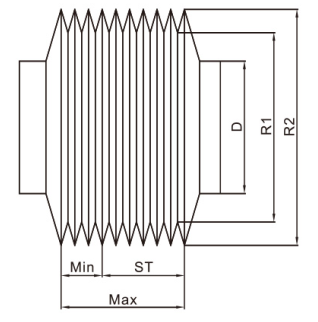

MAX=Open Length
MIN=Closed Length
ST=Travel length
R1=Inside Diameter of Cylinder
R2=Outside Diameter of Cylinder
D=Diameter of Install Point

Round Bellows Cover Data

Material: 0.5mm TPU black / white

Inner Size	Outer Size	Max	Max: Min	Regular Size infomation	Inner Size	Outer Size	Max	Max: Min
40	80	5~4167	12:1		63	115	5~4167	12:1
40	90	5~4167	12:1		63	127	5~3846	13:1
40	95	5~4167	12:1		68	105	5~4167	12:1
40	105	5~3846	13:1		68	115	5~4167	12:1
45	80	5~4545	11:1		68	127	5~3846	13:1
45	90	5~4167	12:1		75	115	5~4167	12:1
45	95	5~4167	12:1		75	127	5~4167	12:1
45	105	5~3846	13:1		75	140	5~3846	13:1
50	80	5~5000	10:1		80	115	5~4545	11:1
50	90	5~4167	12:1		80	127	5~4167	12:1
50	95	5~4167	12:1		80	140	5~3846	13:1
50	105	5~4167	12:1		90	127	5~4167	12:1
50	115	5~3846	13:1		90	140	5~4167	12:1
57	90	5~4545	11:1		120	185	5~3846	13:1
57	95	5~4167	12:1		120	190	5~4167	13:1
57	105	5~4167	12:1		140	185	5~4167	12:1
57	115	5~4167	12:1		140	190	5~3846	13:1
63	95	5~5000	10:1		238	298	5~3846	13:1
63	105	5~4167	12:1		自定义	自定义	自定义	……
Remark:①Customised diameter of round bellows acceptable ②Nylon Plate or PVC plate can be fixed extraly ③Max/ Min and diameter are required

Flange	Thickness
Metal	1mm	1.5mm	2mm	3mm	4mm	5mm
SUS	1mm	1.5mm	2mm	3mm	4mm	5mm
PVC	1mm	1.5mm	2mm	3mm
